Whiteboard
Introduction
| To provide the most advanced education solution, Hanwang Technology Co, Ltd, with many years of solid experience of research & development, and careful study of teacher and students’ need, Hanwang launched electromagnetic white board, it is has many advantages in its handwriting pen, white board, anti-electrostatic ability etc. Every detail of hardware and software is specially designed for teachers, it also perfectly combines the high technology with traditional habits, enhancing the interactive of classroom, therefore the classroom efficiency is improved dramatically. |
| Electro-magnetic resonance technology Battery-free & Cordless Pen Used with cordless and battery free stylus technology, zero maintenance. 512 levels pressure sensitivity Pen with 512 levels pressure sensitivity, calligraphy and painting is also available. Three Pen Shortcuts mouse、right mouse、double click Eraser：Pen-tailed eraser Water-based pen function Water-based pen can write and erase directly on the board, easy to use. |
Whiteboard Technical Specification
|
Features |
Specification |
|
|
Model |
EP082SYS-P |
EP100SYS-P |
|
Dimensions（WxHxD） |
1696x1276x54（mm） |
2216x1276x54（mm） |
|
diagonal size |
82” |
100” |
|
Active Area |
1524 x1143（mm） |
2032 x 1143（mm） |
|
Effective diagonal size |
1905（mm）/ 75” |
2331（mm）/ 92” |
|
Board proportion |
4:3 |
16:9 |
|
Package Size |
1736 x 1316 x 100（mm） |
2256 x 1316 x 100（mm） |
|
Induction Mode |
Electromagnetic resonance technology |
|
|
Pen |
Wireless and battery free stylus |
|
|
Pressure Sensitivity |
512 levels Pen |
|
|
Pen Shortcuts |
three（mouse、right mouse、double click） |
|
|
eraser |
Pen-tailed eraser |
|
|
Resolution |
22352×13970 |
|
|
Positioning accuracy |
±0.5mm |
|
|
Maximum Reading Height |
10 mm |
|
|
Signal tracking speed |
5m/s |
|
|
Report Rate(max) |
160pps |
|
|
Calibration method |
Four-point calibration |
|
|
Interface |
Standard USB2.0 |
|
|
External cable |
Standard 8m USB 2.0 cable |
|
|
Power |
USB to take power,less than 1w,less than 5V/200mA |
|
|
Installation |
Wall hanging（standard）/Mobile support（choose） |
|
|
Operating Temperature |
－10℃--50℃ |
|
|
Storage Temperature |
－40℃--60℃ |
|
|
Storage Humidity |
0%-95% |
|
|
Operating System |
WindowsXP/ Vista / Win7 / Win8 |
|
Software Advantage:

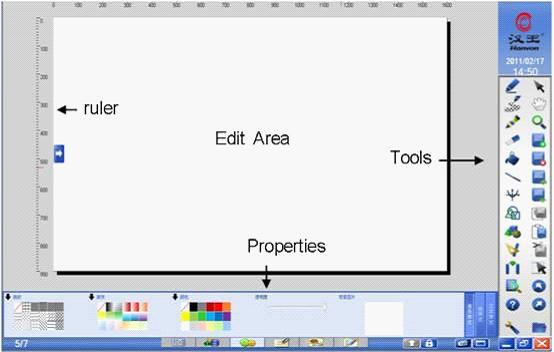

| Introduction： Hanvon white board V5.0 Software is customized for teachers and speakers. It has several marking Tools, user can easily insert and edit multimedia documents, such as text, picture, audio, video and flash. In addition, it also has so many simulation Teaching Tools, such as Spotlight, Curtain, Timer, therefore, it brings great convenience to teachers.  |
Basic Applications：
| Pen |  |
| Integrate Multimedia Files |  |

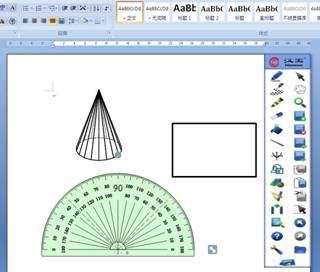

| Tools |   |
| Special Eraser |  |
| Fill Color |   |
| Three-dimensional Graphics |
 |
| Plane figure |  |
| Handwritten Character & word Recognition |   |
| Handwritten Formula Recognition |   |
| Handwritten Graphics Recognition |  |
| Handwritten Table Recognition |  |
| Drag the Object |  |
| Edit Table |  |

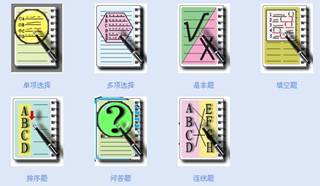

| Quiz |  |
| Function |  |
| Edit picture |  |
| Chart |  |
| Mark on the Video |  |
| Import and Export | Insert 、word、PPT、HTML、PDF |
| Object operation | Can Edit object in so many ways   |
| Mark on the Desktop, Can use all of the tools in other documents such as PPT, word, Excel,picture, etc. |
 |
| Distance Learning | Support E-learning, students in different classroom can communicate with each other |
